SPECIFICATIONS

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

No-Load Speed: 7500rpm

Origin: Mainland China

Power Type: Petrol / Gas

Use: SOIL

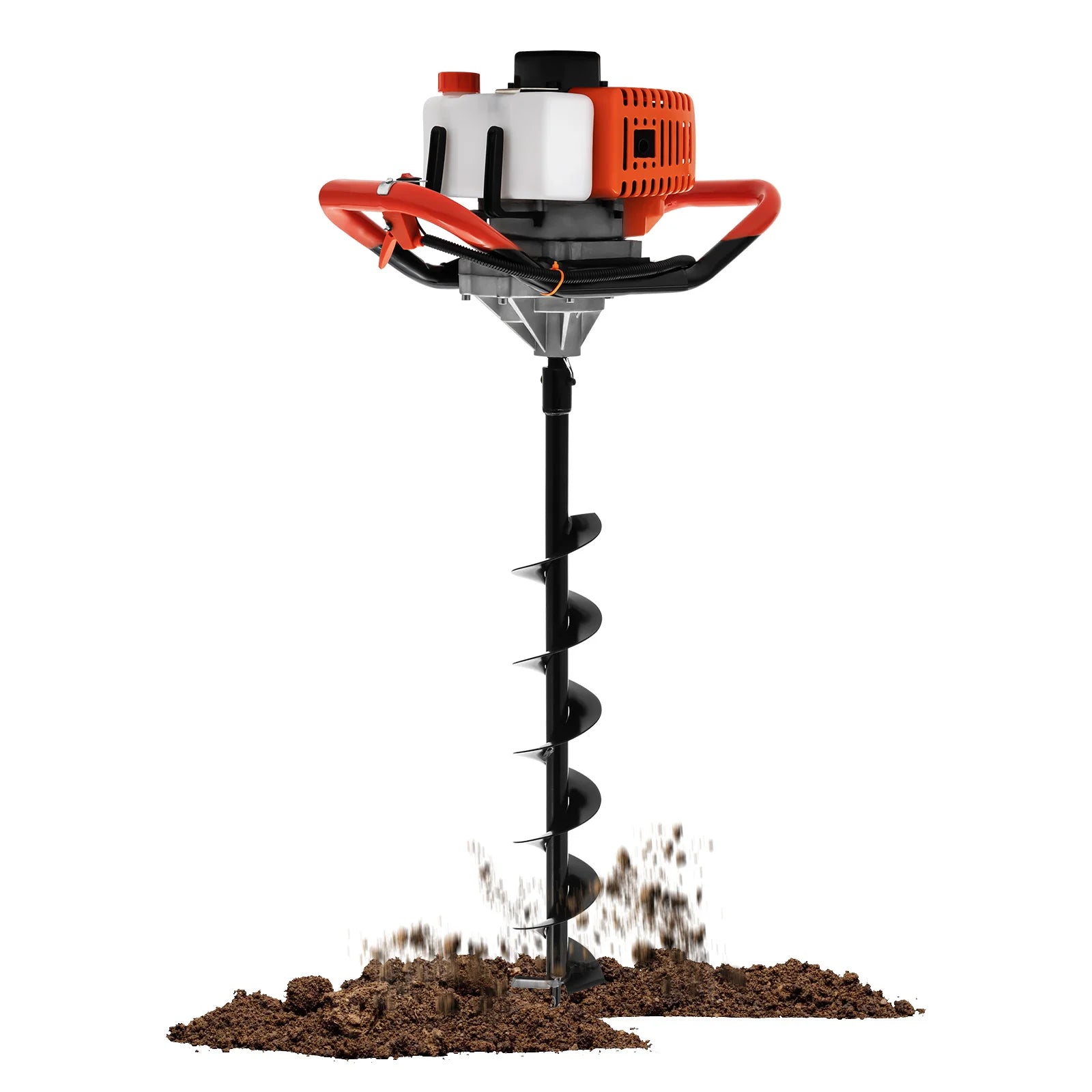

The traditional way of digging a hole with a hoe is time-consuming, labor-intensive, and prone to backache at the end of the process. Advancement in technology has brought about labor-saving and professional digging equipment which is ready to liberate you from the hassle of manual digging. Equipped with a powerful fuel engine, this auger post hole digger digs more efficiently than manual trenching, saving valuable time and making digging a pleasure.

Application

It can be drilled in epidermal turf and clay, and can be used for tree planting holes, fence stakes, greenhouse stakes, fiber optic cable pole stakes, tree fertilization stakes, etc.

Starting Method

1. Turn on the switch.

2. Before each start, press the oil bubble to suction oil into the oil pipe.

3. When the cold machine starts, close the damper switch first.

4. When ignition is heard, pull the start handle 5-8 times.

5. Open the damper switch.

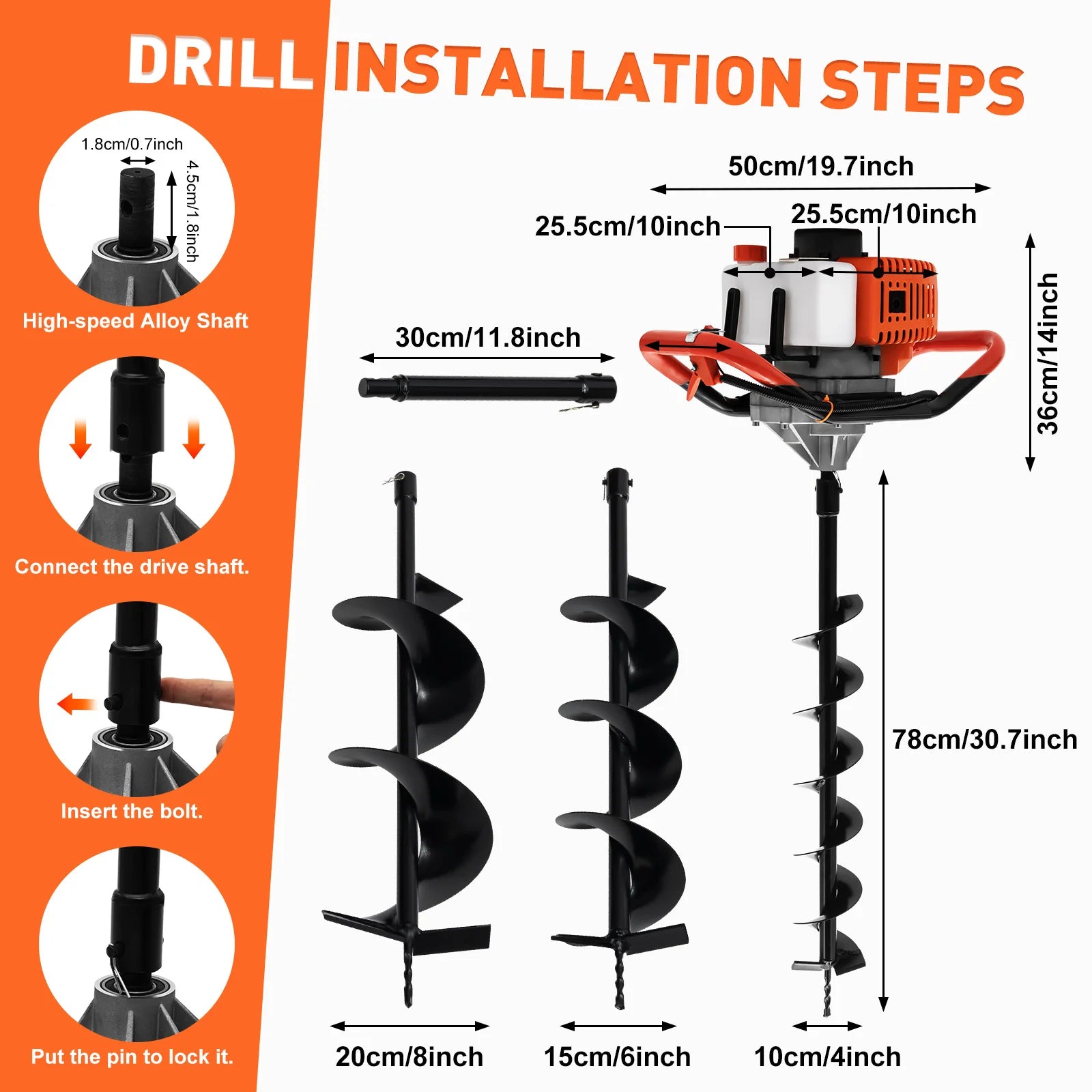

Drill Installation Steps

1. Connect the drive shaft.

2. Insert the bolt.

3. Put the pin to lock it.

Specification

Model: IE44F-5

Material: Steel, Plastic, Rubber, Aluminum, Alloy, Manganese Steel Alloy

Color: Orange, Black

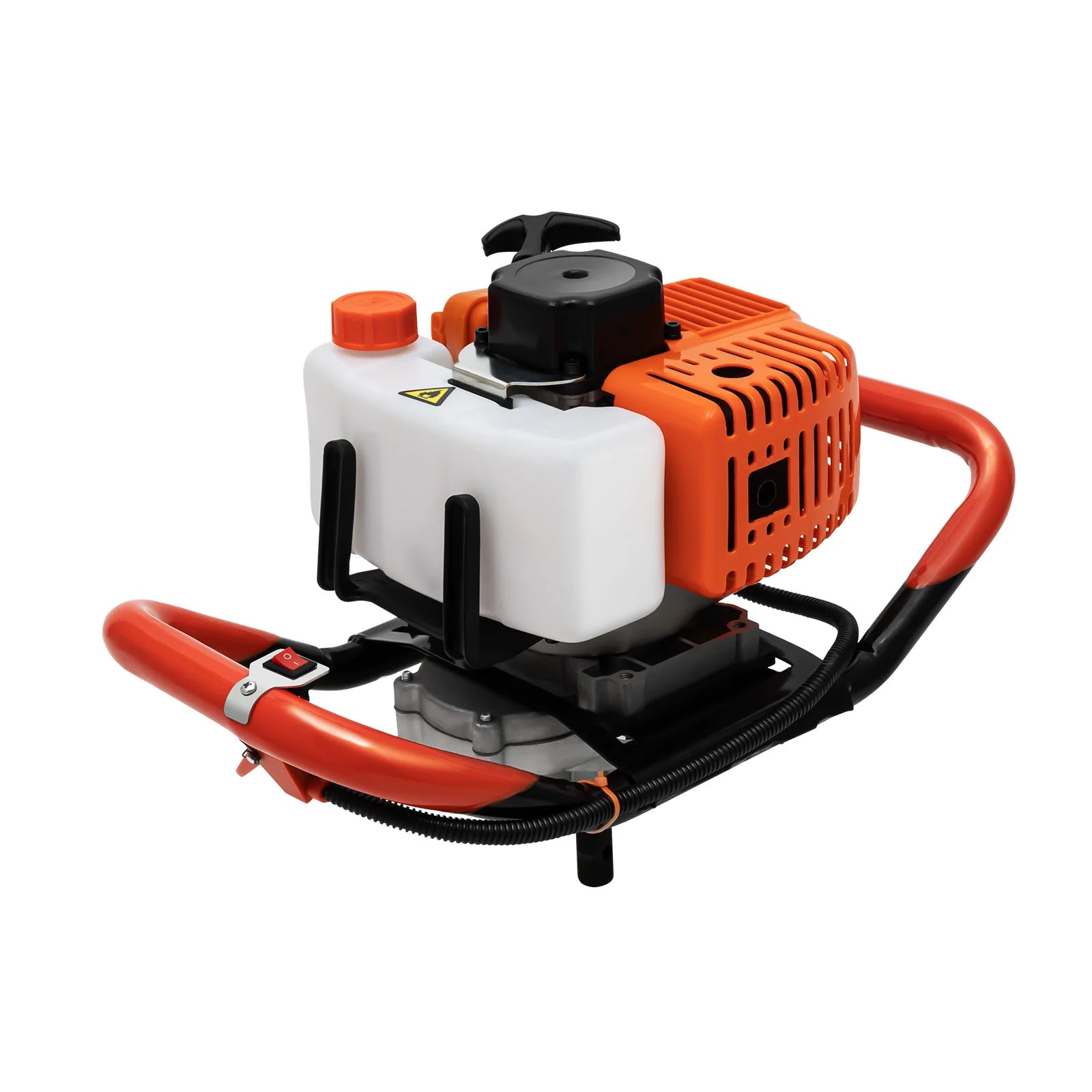

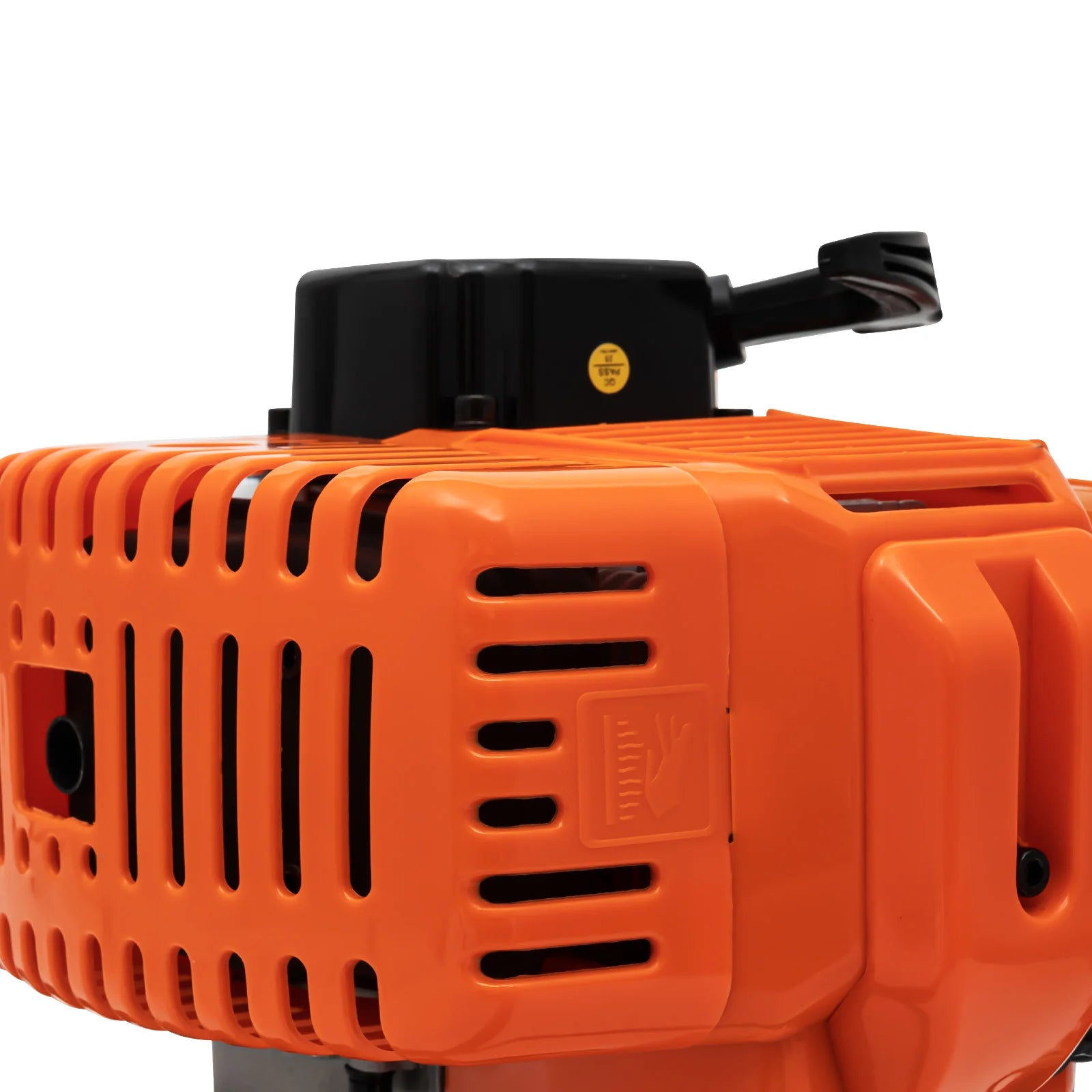

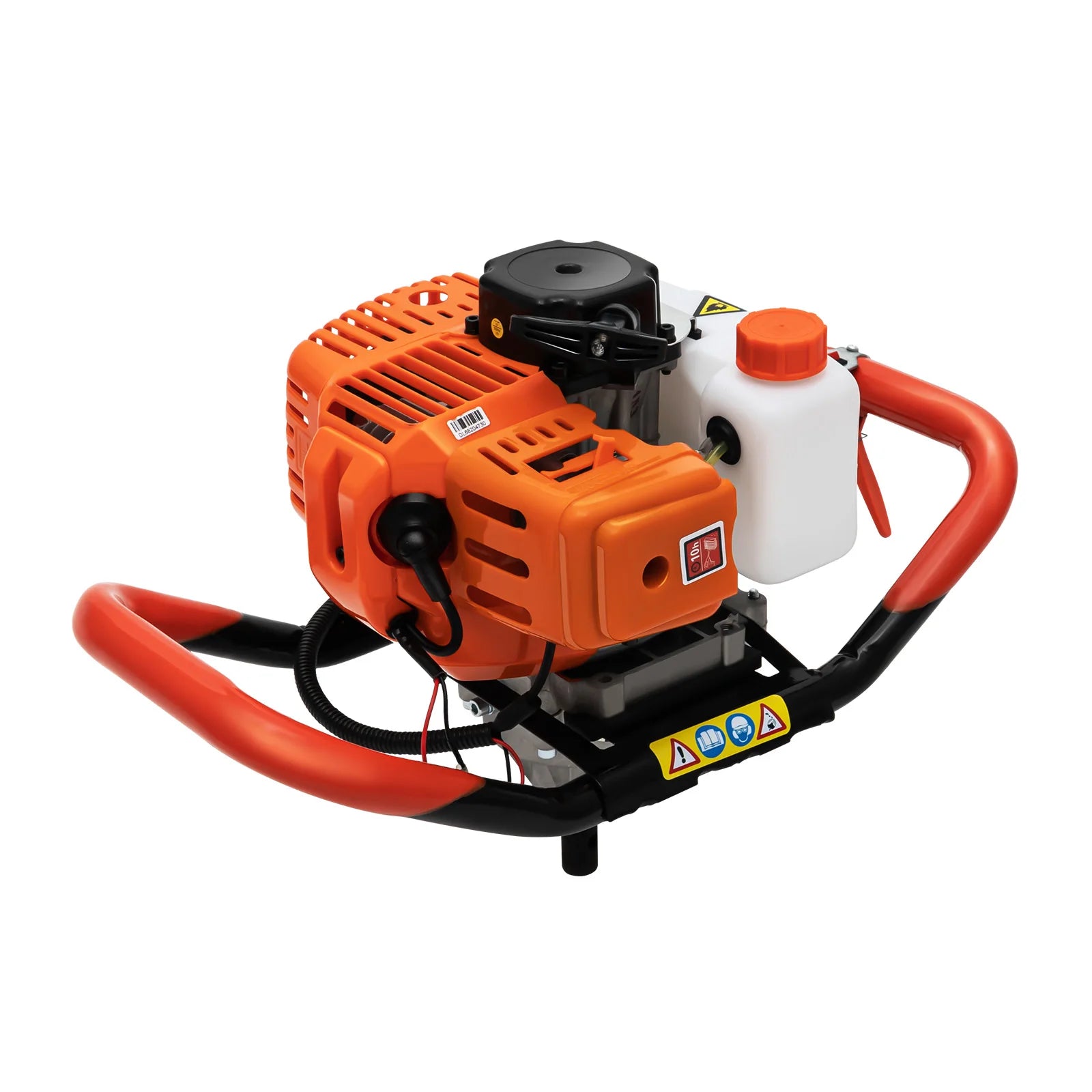

Engine Type: Single Cylinder, 2-stroke, Air-cooled

Displacement: 52cc

Mixed Fuel: Gasoline:Two-stroke Oil (25:1)

Ignition System: C.D.I.

Power: 1.46kw

Fuel Tank Capacity: 1.2L/0.3gal

Maximum Speed: 7500rpm

Rated Speed: 8500rpm

Horsepower: 1.98hp

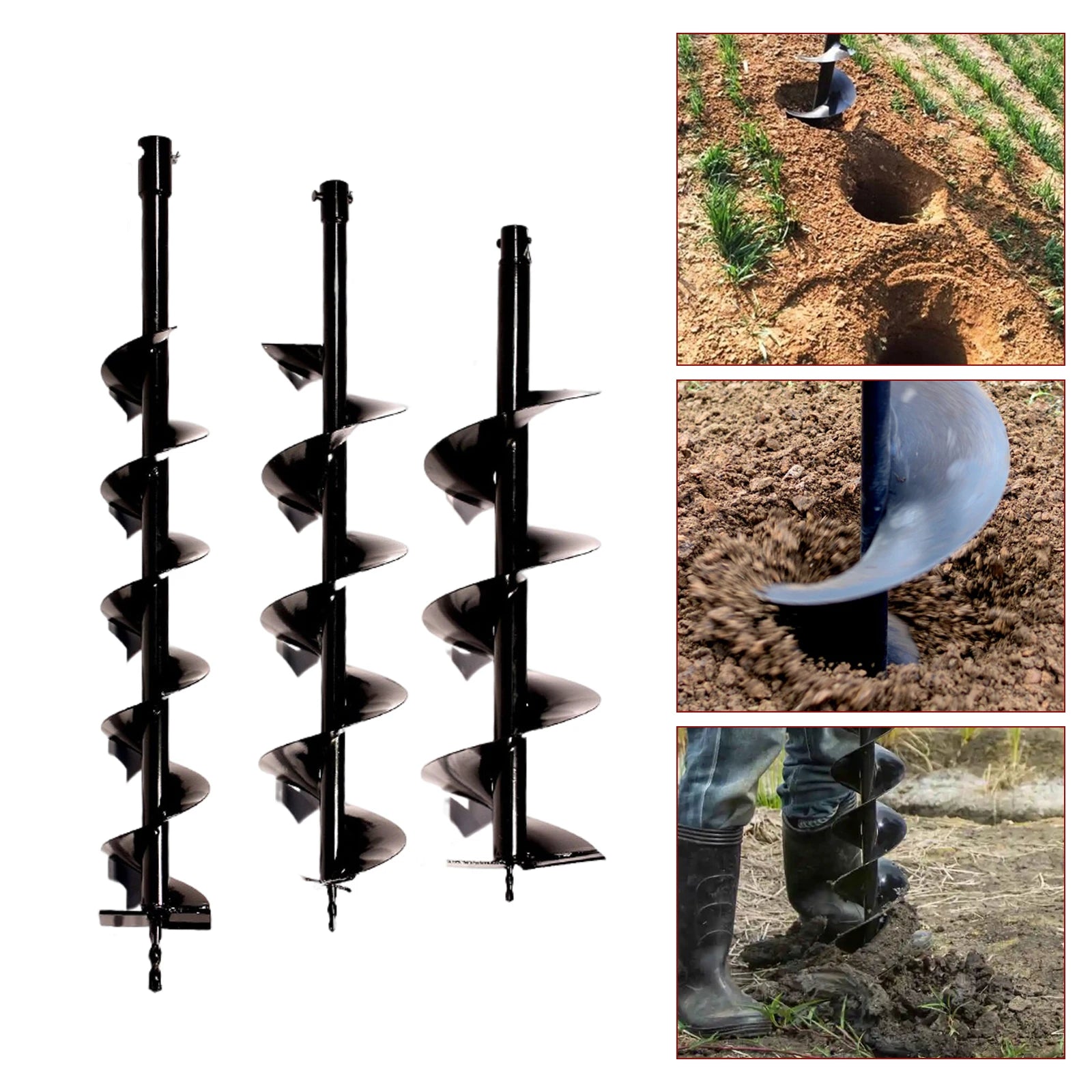

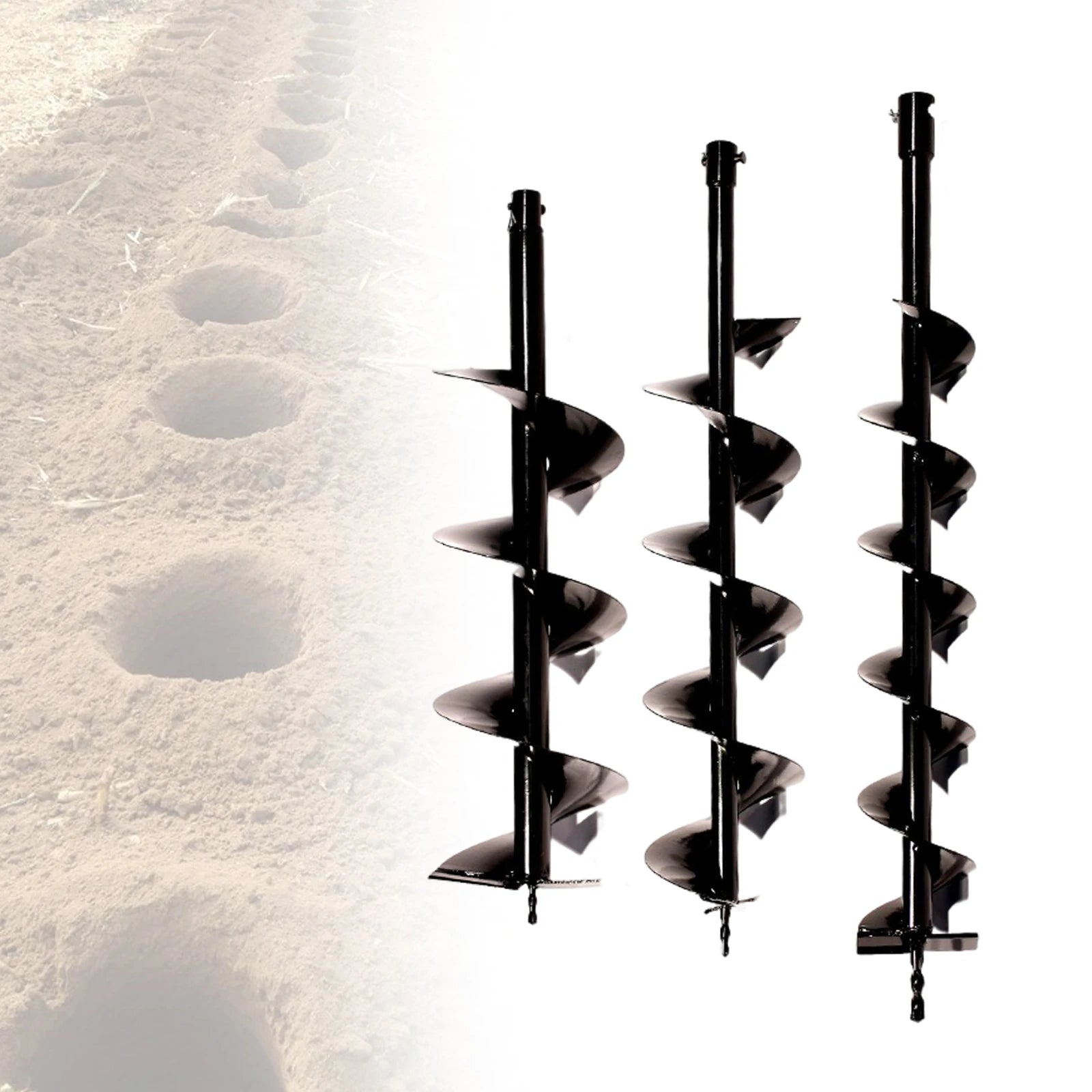

Drill Diameter: 10cm/4inch, 15cm/6inch, 20cm/8inch

Shaft Size: 1.8*4.5cm/0.7*1.8inch

Drill Length: 78cm/30.7inch

Extension Bar Length: 30cm/11.8inch

Engine Size: 25.5*25.5cm/10*10inch

Digger Whole Size: 50*22*36cm/19.7*8.7*14inch

Drill Package Size: 80.5*23.5*32cm/31.7*9.3*12.6inch

Digger Package Size: 39*36.5*28.5cm/15.4*14.4*11.2inch

Drill Gross Weight: 9.5kg/20.9lbs

Drill Net Weight: 8kg/17.6lbs

Digger Gross Weight: 9.1kg/20lbs

Digger Net Weight: 8.2kg/18lbs

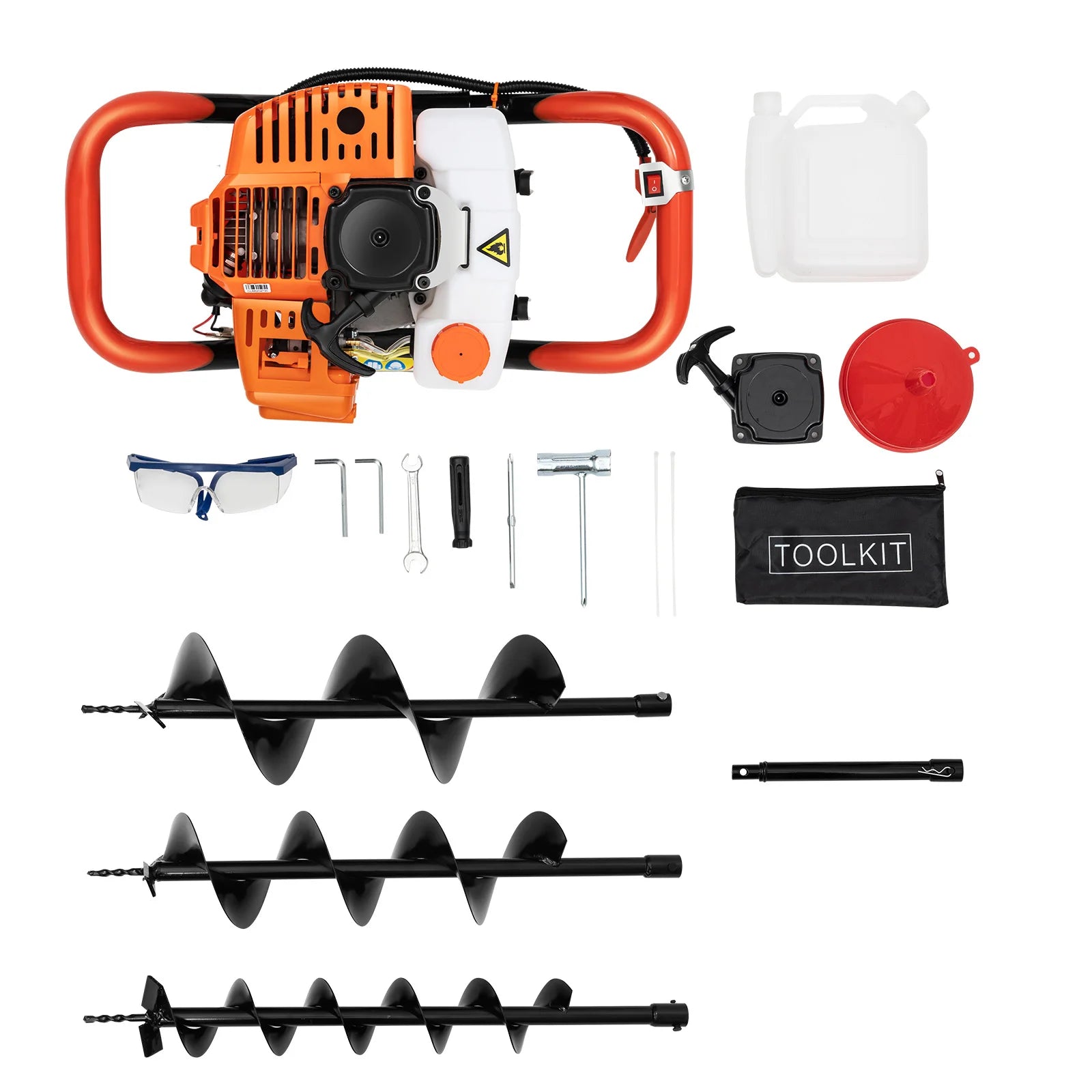

Package Included

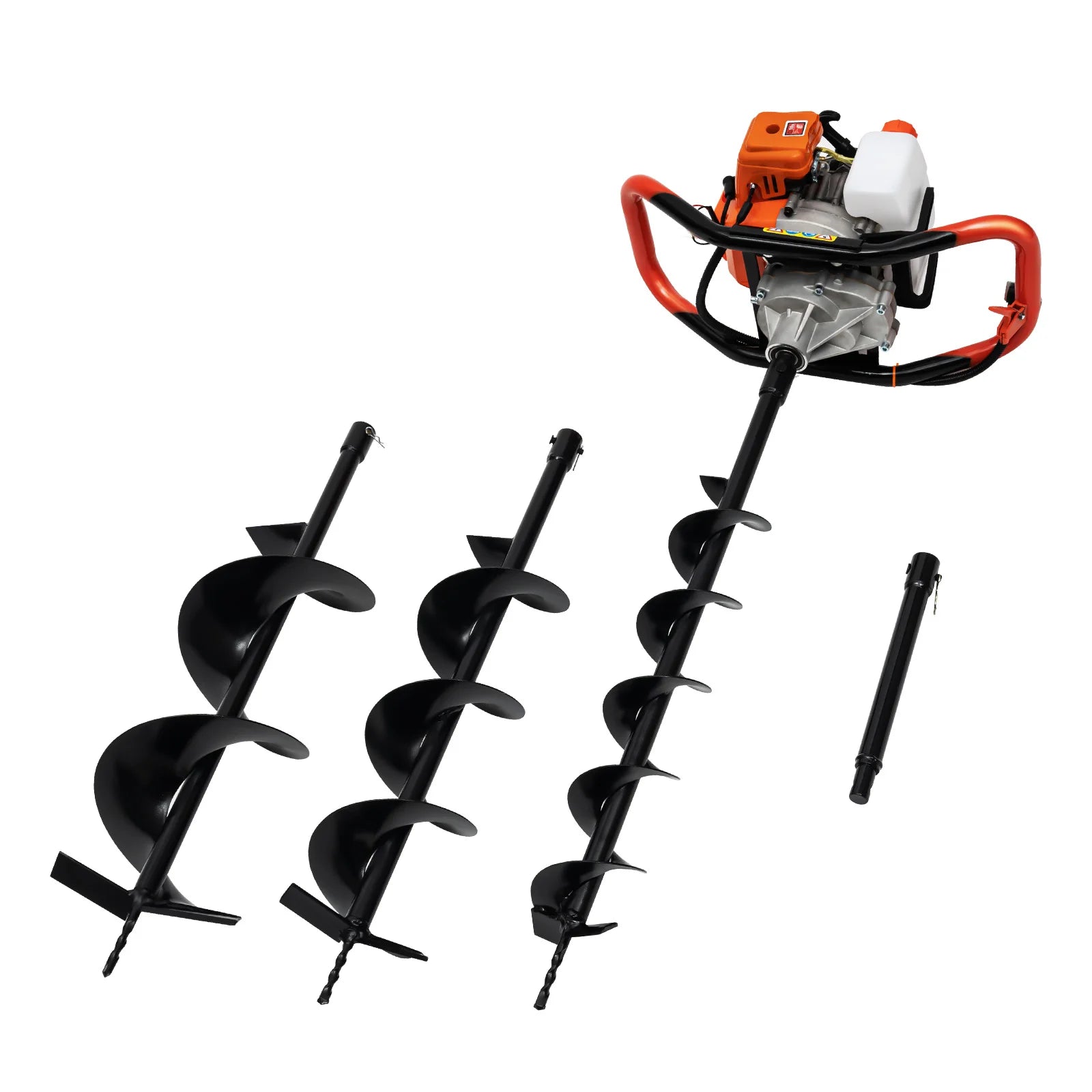

1 x Auger Post Hole Digger

3 x Drill Bits

1 x Extension Bar

1 x Fuel Oil Mixing Bottle

1 x Funnel

1 x Spare Starter

1 Pair x Goggles

1 x English Manual

Tool Kit for Assembly

Notes

1. The tank should be filled with a mixture of oil (gasoline: two-stroke oil = 25: 1). Please add butter to the gearbox. It should be used with two-stroke oil rather than four-stroke oil, otherwise accidents will occur. All oils are excluded.

2. Please start the machine by pulling the starter quickly without stopping in the middle.

3. Press the oil bubble a few more times before starting. If there is oil coming in and out of the fuel line, which means oil has been supplied.

4. Do not use on steep slopes exceeding 15°.

5. Please do not drill ice, frozen soil, sandy clay, and sand and gravel mixed soil, or the drill bit will bend easily.

6. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
